Low Profile Semi-Auto Stretch Wrap Turntable, 1100 Series - 105"L x 60"W x 100"H, 4400 lbs. Capacity
Perform more important tasks while stretch wrappers prepare pallets
SKU: SWM-SA-1100
Manufacturer: Handle-It
The semi-automatic turntable stretch wrapper model 1100 helps reduce labor costs while streamlining packaging operations. Operators simply load the pallet onto the turntable, attach the stretch wrap, select the correct parameters for the load and start the machine. Once the wrap is in progress, workers are free to go about more important tasks. The user-friendly PLC control board stores different programs, so operators don't have to set parameters every time. The 250% powered pre-stretch reduces the amount of film used to wrap a pallet, and allows for film tension to be adjusted. Loading ramps and factory installed scales are available below. Please note that adding a scale means the machine cannot be floor mounted.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |  |

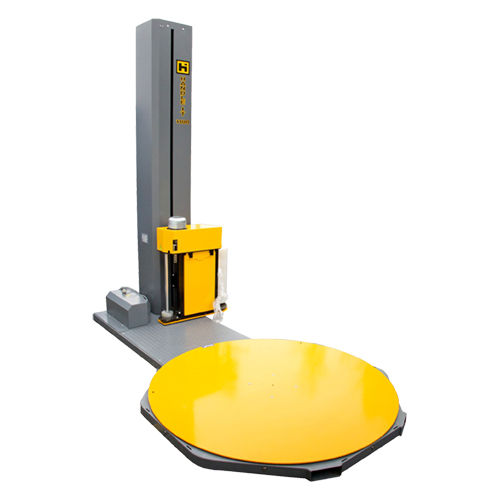

100 AC Angle View
Features
- User-friendly PLC control board
- Frequency controller for carriage & turntable speed adjustment
- Photocell for pallet height detection
- Safety stop at base of the carriage
- Stop at home position
- Adjustable parameters: bottom wraps, top wraps, carriage ascent and descent speed, film tension, & starting wrap height
- Quick selection of 6 main parameters or saved selections
- Semi-manual, semi-automatic, or fixed height operating modes
- USB port for uploading software or downloading settings, reports and statistics
- 6 working cycles: ascent/descent, top sheet, only ascent, only descent, layers and stack
- Stores 32 end user programs
- Audible warning at start and stop of cycle
- On-board diagnostics
- Wrapped pallet counter
- Turntable brakes at end of cycle
- Rack and pinion carriage drive system for reliability and decreased down time
- Belt driven pre-stretch carriage
- Bonfiglioli AC motors
- Password protection
- Lead Time: 1 to 2 weeks + transit time
- Width: 60"
- Height: 100"
- Length: 105"
- Profile: Low
- Size: 59" Turntable, 105"L x 60"W x 100"H
- Type: Semi-automatic with pre-stretch
- Capacity: 4400 lbs.
- Pre-Stretch: Yes
- Wrap Height: 86"
- Turntable Diameter: 59"
- Max Pallet Size: 48" x 80" (93" Diagonal)
- Turntable Height: 3"
- Powered Pre-Stretch: 250%
- Power Supply: 110v, 10 amp
- Turntable Speed: 3-12 RPM
- Auto Film Cut: Available
- Film Type: 20" machine film w/ 3" core, 100+ gauge
- Max. Loads per Day Average: 300
- Mast and Carriage: Rack-and-pinion
- Weight: 900.0 lbs. ea.
- Brochure (958KB PDF, opens in new window)
