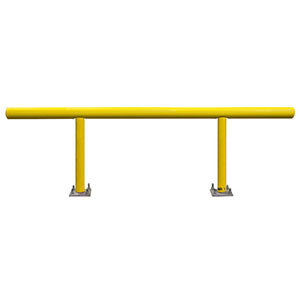

Pipe Guard Rail - Standard Single High - 42"H x 10' L
Safeguard machinery, buildings, and walkways with our protective guardrail systems
SKU: SGR-1-120-42-P
Manufacturer: Ideal Shield
Guardrail has two major uses when installed inside your warehouse or production area; protection and direction. First, and most importantly, guardrail protects personnel and equipment from physical damaged caused by pallet trucks, jacks, and other motorized equipment. Secondly, guardrail can be used to create lanes of traffic to reduce interaction between pedestrians and vehicle traffic. This guardrail is mounted using baseplates that must be anchored to the floor. Anchor bolts are sold separately.
Core mounted guardrail is available upon request; contact us for more information.
Core mounted guardrail is available upon request; contact us for more information.
$607.70
- Type: Standard
- Style: Single rail
- Height: 42"
- Length: 10'
- Construction: Steel core shielded with high density thermoplastic polyethylene (HDPE) sleeves with ultraviolet and anti-static additives
- Includes: (2) Pipe Posts - 2.5" diameter schedule 80, (1) Pipe Rail - 4" diameter schedule 40, (2) Base Plates - 1/2" x 8" x 8"
- Weight: 211.0 lbs. ea.
Click on the thumbnails to see a larger image below.
 |  |  |  |  |  |  |
Polyethylene anti-static sleeves give your guardrail a smooth finish that never chips, rusts, or needs paint.
Costly equipment must be protected from accidents which may not only cost you in repair bills, but cost valuable time if equipment needs to be shut down or slowed down. A conveniently located section of guardrail is an excellent form of machinery preventive maintenance. Secondly, guardrail aids in the direction of equipment and personnel through your facility. Using guardrail to control traffic can help prevent personnel from entering hazardous areas or walking between aisles or machines.
This guardrail uses a steel inner core which is connected to a base plate and bolted to the floor using 15/16" anchor bolts. Polyethylene anti-static sleeves are then slipped over the steel core to give your guardrail a smooth look that will never chip, rust, or need painted. Base plate installation is extremely sturdy and is the most common used method of installing this particular type of guardrail. We can however offer this guardrail as a "core mounted" type which requires the entire diameter of the posts to be slipped into predrilled holes in your flooring. Please contact us if your guardrail must be core mounted.
- Pipe Guardrail Flyer (2.29 MB PDF, opens in new window)
- Specifications (399 KB PDF, opens in new window)
- Installation Instructions (78 KB PDF, opens in new window)
- Plate Installation Diagram (215 KB PDF, opens in new window)
- Core-in Installation Diagram (330 KB PDF, opens in new window)
- Sizing (513 KB PDF, opens in new window)
- Industrial Guardrail Flyer (1.47 MB PDF, opens in new window)
Lead Time: 2 weeks + transit time
